Nissan Rb26 engine

Specifications

Manufacturer Yokohama plant
Also called RB26DETT
Production years 1989-2002
Cylinder block alloy cast iron
Fuel system distributed injection
Configuration inline
Number of cylinders 6
Valves per cylinder 4
Piston stroke, mm 73.7
Cylinder bore, mm 86
Compression ratio 8.5
Displacement, cc 2568
Power output, hp 280/6800
280/6800
280/6800
Torque output, Nm / rpm 353/4400
368/4400
392/4400
Fuel type 98
Euro standards EURO 2/3
Weight, kg ~260
Fuel consumption, L/100 km (for Nissan Skyline GT-R 2001)
— city
— highway
— combined
15.2
10.4
12.8
Oil consumption, gr/1000 km up to 500
Recommended engine oil 5W-30 / 5W-40 / 10W-30 / 10W-40
Engine oil capacity, liter 4.6
Oil change interval, km 15000
Normal engine operating temperature, °C ~90
Engine lifespan, km ~320 000

Description

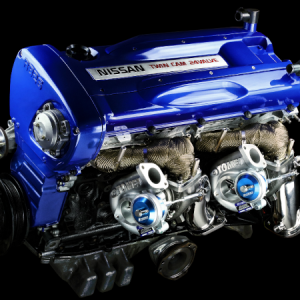

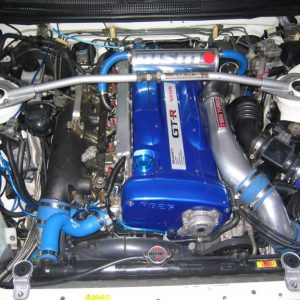

Engine Nissan RB26DETT

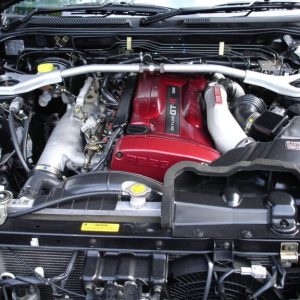

The RB26DETT engine (or RB26 for short) was installed mainly on the Nissan Skyline GT-R in the body of R32, R33 and R34, Nissan Stagea 260RS. This engine was developed in the Nismo division for the Skyline R32 GT-R car racing. The engine has a high potential to increase its power, thanks to which RB26DETT gained worldwide fame.

The timing mechanism is driven by a toothed belt. The RB26DETT intake system, unlike other RB series engines, has 6 throttle assemblies instead of one (one throttle valve for each cylinder). The engine is equipped with two turbochargers (T28 ceramic turbines). Such a system is called parallel turbocharging or Twin Turbo.
