1KD Engine for sale

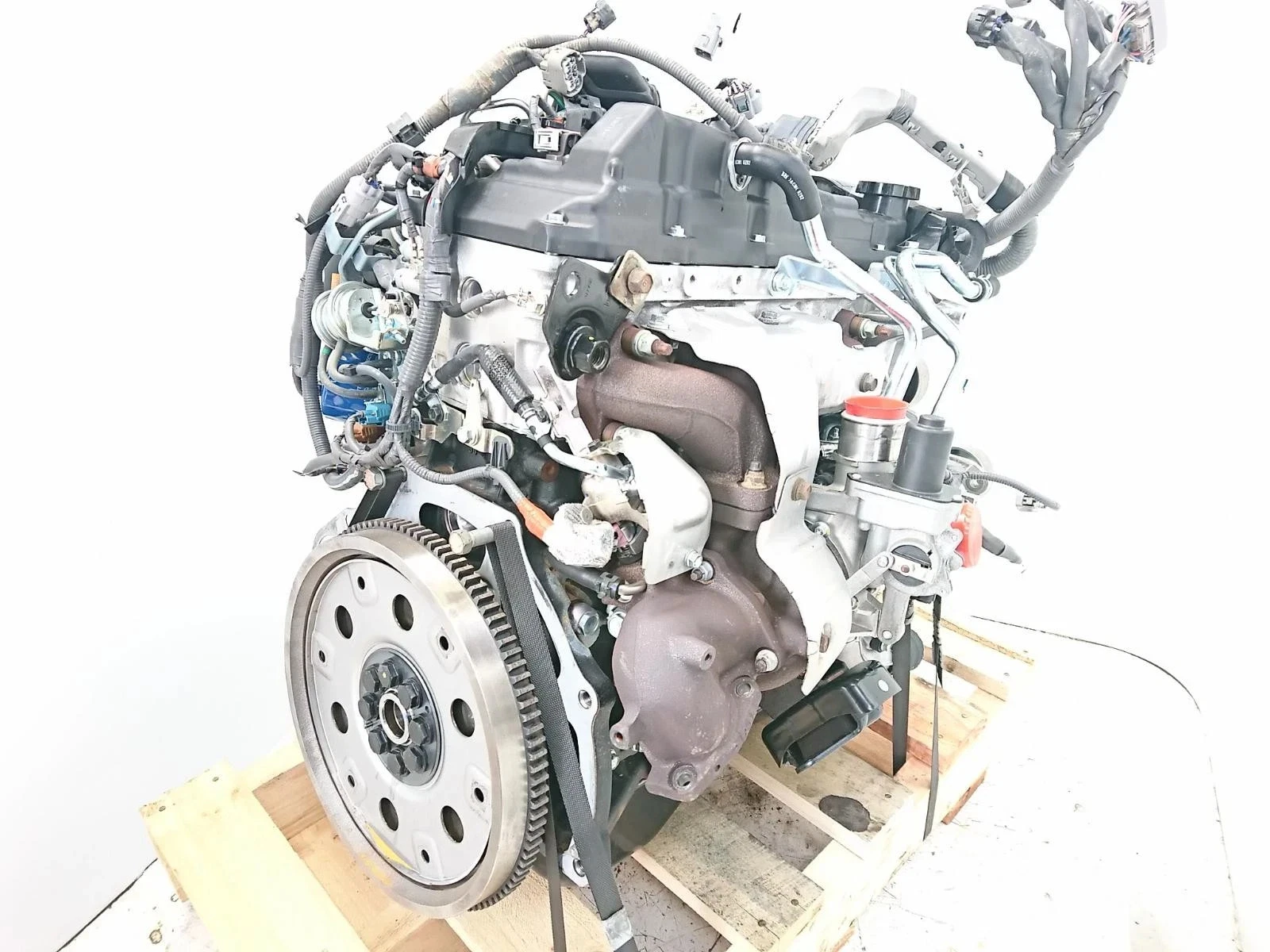

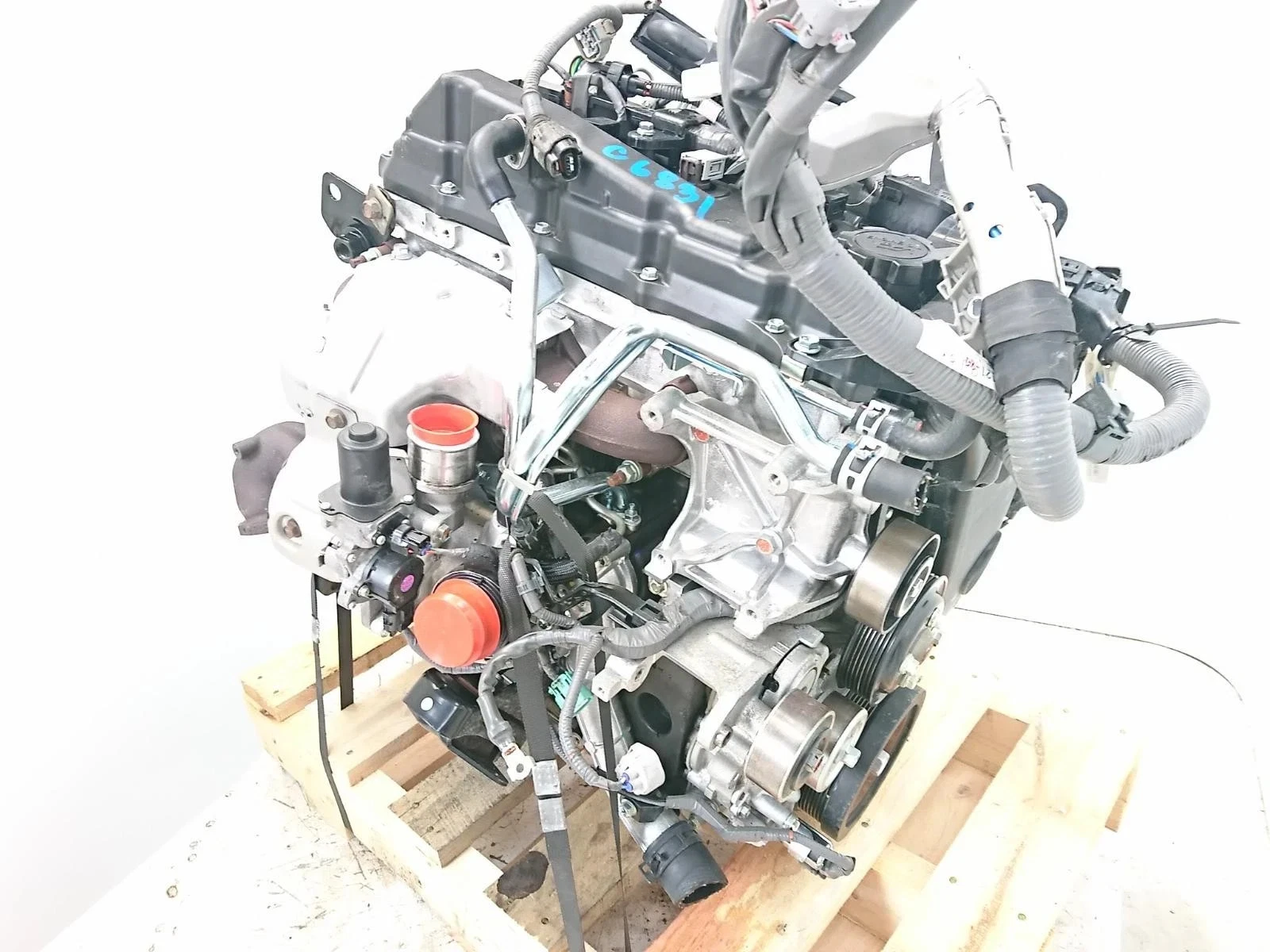

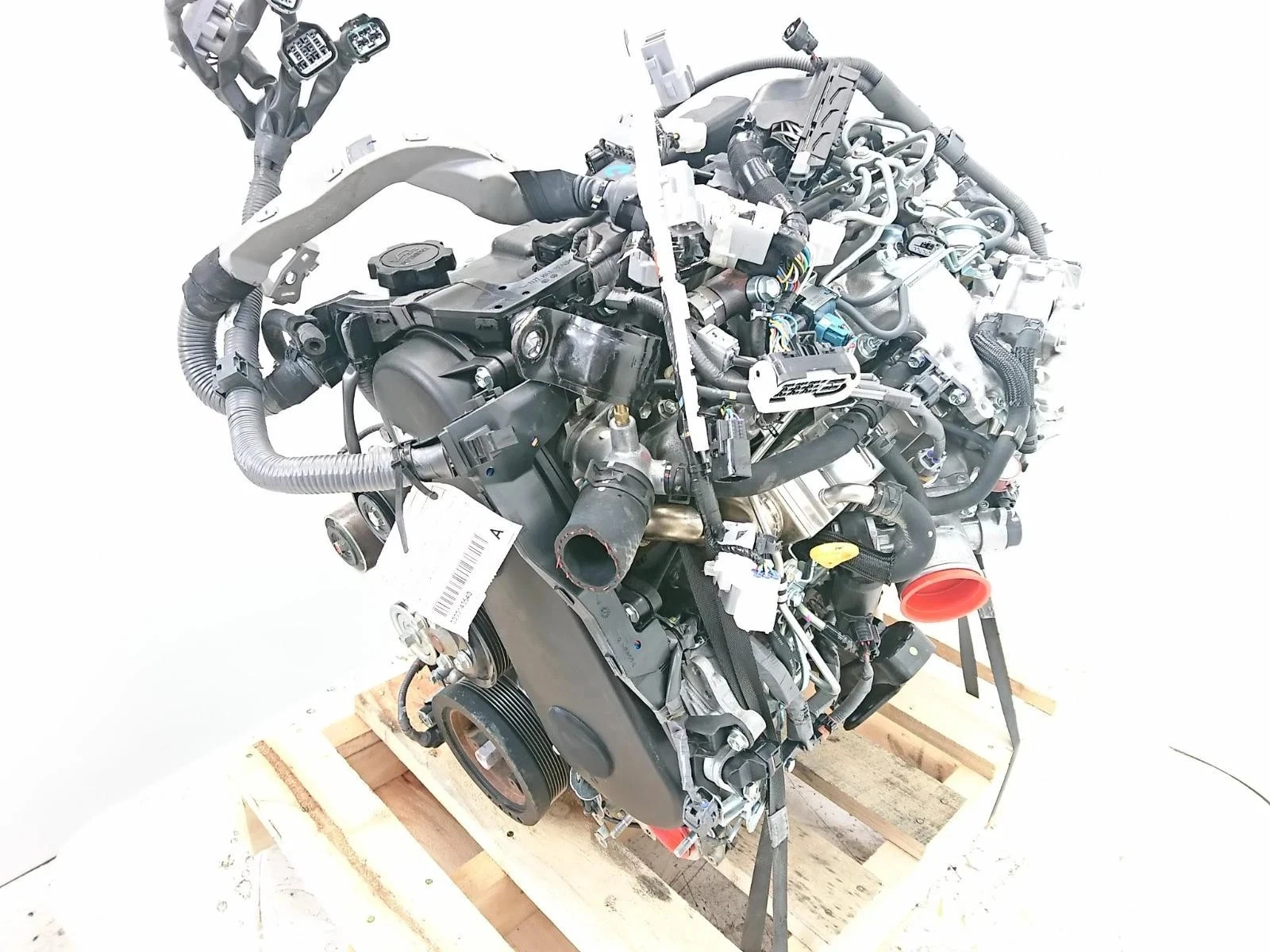

The Toyota 1KD-FTV is a 3.0-liter, inline-four, turbocharged diesel engine introduced in 2000 as Toyota’s first common-rail D-4D diesel for passenger and commercial vehicles. It powers models like the Land Cruiser Prado, Hilux, Fortuner, and HiAce.

Specifications:

• Configuration: DOHC, 16-valve, inline-four

• Displacement: 2,982 cc

• Bore x Stroke: 96 mm × 103 mm

• Fuel System: Common-rail direct injection with Variable Nozzle Turbocharger (VNT) and intercooler

• Power Output: Approximately 170 hp (127 kW) at 3,400 rpm

• Torque: 343–410 Nm (253–302 lb-ft) from 1,400–3,400 rpm

• Compression Ratio: 17.9:1

• Injection Pressure: Up to 1,350 bar (19,600 psi)

The 1KD-FTV features a 32-bit ECU controlling fuel quantity, boost pressure, and pilot injection for smoother combustion and reduced noise. It delivers 17% more power with 11% less fuel consumption than its predecessor, the 1KZ-TE. Known for strong low-end torque, durability exceeding 400,000 km with proper maintenance, and relatively straightforward servicing, the 1KD remains a popular choice. It is sensitive to fuel quality, requiring high-grade diesel to protect the costly common-rail injection system
